In profile extrusion processes, product quality issues such as extrusion deformation and extrusion warping are commonly influenced by multiple process factors. Understanding how these issues develop in profile extrusion is essential for improving dimensional stability and overall production consistency.
This article explores the main causes and solutions to these common extrusion problems.
In actual profile extrusion processes, extrusion deformation and warping are rarely caused by a single factor. Instead, they result from the coupled effects of material flow, heat transfer, and mechanical pulling. The main mechanisms are as follows:
During the cooling stage after extrusion forming, differences in cooling rates across the profile cross-section lead to varying degrees of volumetric shrinkage. This differential shrinkage creates internal stress gradients. When the stress exceeds the material’s allowable limit, it manifests as warping or localized deformation, which is one of the most common extrusion defects.
If the die channel design does not achieve balanced flow resistance, the melt will exhibit inconsistent velocity and pressure distribution when entering the forming zone. This results in variations in density and molecular orientation across the cross-section. Such non-uniformity in the initial forming stage is amplified during subsequent cooling, ultimately leading to dimensional deviation and structural deformation.
During the operation of the extrusion line, unstable heating zone control or inconsistent plasticization can cause fluctuations in melt viscosity. Different regions of the material therefore exhibit different rheological behaviors and shrinkage characteristics during flow and cooling, increasing the risk of uneven internal stress and further inducing extrusion deformation.
If the haul-off system is not properly synchronized with the extruder, the profile may be subjected to additional tensile or compressive forces before it is fully stabilized. This external stress disrupts the internal stress balance of the material, causing bending or twisting after the profile exits the calibration section.
If the cooling path design is inappropriate or the stress relaxation time is insufficient during calibration and cooling, residual stresses inside the material cannot be fully released. These “frozen-in” stresses may gradually release during storage or use, resulting in delayed warping or deformation issues.
Solving deformation and warping in profile extrusion requires a systematic optimization of the entire production system, focusing on eliminating imbalances among thermal, rheological, and mechanical pulling effects. Based on process control logic, the following five key strategies can be implemented:
The core objective is to ensure consistent thermal shrinkage across the profile cross-section, thereby reducing the formation of stress gradients.
In practice, the cooling medium distribution should be uniform so that all surfaces of the profile experience consistent heat exchange, ensuring a uniform solidification process. For semi-crystalline materials, this control is particularly critical, as differences in crystal growth rates can significantly increase warping tendency.
For hollow profile structures, active cooling air flow can be introduced into the central cavity to improve delayed cooling in internal ribs, thereby eliminating deformation risks caused by temperature non-uniformity across the cross-section.
Flow uniformity in the die directly determines the velocity distribution of the melt at the exit, making it a key factor in controlling initial forming quality.
The optimization focus is on adjusting flow resistance distribution so that exit velocities remain consistent across all regions. This can be achieved by modifying the land length in different sections or adding flow restriction structures in high-velocity areas to achieve overall flow balance control. At the same time, die design must ensure a matched mass flow distribution across the entire cross-section to maintain structural consistency.
In engineering practice, CAE flow analysis is typically used to iteratively optimize die design, reducing reliance on trial-and-error and improving flow uniformity accuracy.
Melt temperature stability directly affects polymer viscosity and rheological behavior. Even minor fluctuations can lead to inconsistent flow conditions.
Therefore, a zoned temperature control structure is commonly adopted, dividing the die into multiple independent temperature control zones, each equipped with thermocouples and heating elements to achieve precise local control. Combined with a real-time feedback-based PID control algorithm (proportional-integral-derivative control), the system’s dynamic response to temperature deviations is improved.
In addition, adding insulation layers around conveying pipes and the die can effectively reduce environmental influences such as airflow disturbances, thereby maintaining overall melt temperature stability.
The synchronization between extrusion speed and haul-off speed (i.e., draw-down ratio control) is a key parameter affecting dimensional stability.
When speed mismatch occurs, significant mechanical stress is introduced: excessive haul-off speed leads to material stretching, resulting in wall thickness reduction and orientation anomalies; excessive extrusion output may cause sagging or local deformation before entering the calibration section.
Therefore, a closed-loop control system should be used to achieve real-time synchronization between the extrusion and haul-off units. Typically, a loss-in-weight system is used to dynamically adjust screw speed or haul-off speed based on real-time output feedback, compensating for batch variations and thermal fluctuations to ensure stable line speed matching.
Residual stress mainly originates from “frozen strain” formed due to differences in cooling rates across the profile cross-section, which directly leads to dimensional instability during later release.
In the calibration section, a vacuum system is used to hold the profile against the die wall to ensure dimensional accuracy. However, vacuum pressure must be precisely controlled. Excessive vacuum increases frictional resistance and additional tensile force, thereby introducing new internal stresses.
Meanwhile, by optimizing the cooling path design, the profile can gradually complete heat release and stress relaxation under controlled conditions, significantly reducing the risk of later deformation. In some processes, inline annealing can also be applied, using hot air or infrared heating to gently treat the profile and further release internal residual stress, thereby improving final dimensional stability.

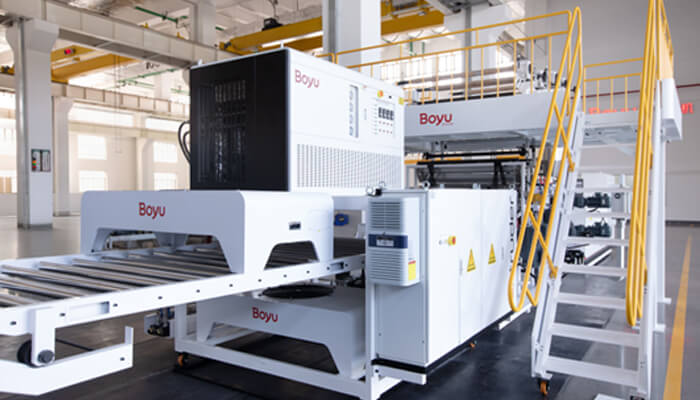

Established in 1998, Boyu Machinery has 28 years of expertise in extrusion technology and is widely recognized as a professional manufacturer of high-performance plastic extrusion equipment. With more than 120 technical patents, Boyu Machinery continuously advances extrusion technology by integrating design, manufacturing, sales, and after-sales service into complete turnkey solutions for global customers.
A key strength of Boyu Machinery lies in its strong R&D capability, supported by a professional engineering team with over 10 senior technical experts. The R&D Center focuses on continuous innovation in process control, energy efficiency, and automation, enabling Boyu Machinery to develop more stable and efficient extrusion systems that meet diverse industrial applications.
In addition, Boyu Machinery provides comprehensive technical support throughout the entire equipment lifecycle, including installation, commissioning, optimization, troubleshooting, and maintenance. This ensures stable production performance while improving operational efficiency, safety, and ease of use.
With a strong focus on innovation, reliability, and engineering precision, Boyu Machinery delivers versatile extrusion solutions designed to support a wide range of modern manufacturing needs worldwide.
In summary, extrusion deformation and warping in profile extrusion are mainly caused by imbalanced cooling, die flow, temperature instability, speed mismatch, and residual stress. Addressing these factors requires a systematic approach across the entire production line.
With 28 years of experience and 120+ patents, Boyu Machinery provides reliable, high-precision extrusion solutions. Contact us to optimize your production performance and improve product stability.
