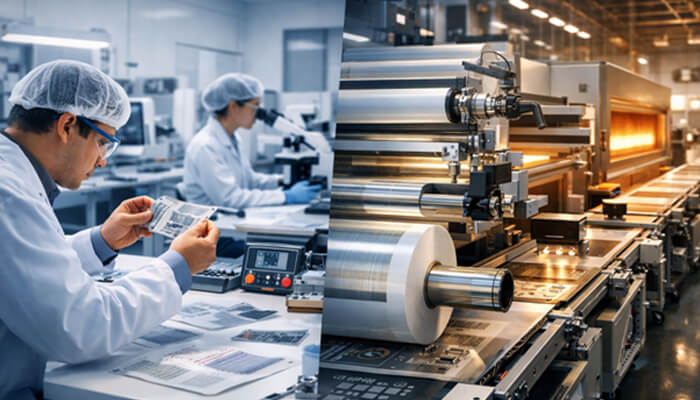

Scaling Printed Electronics From Prototype to Production

Prototyping in printed electronics is relatively straightforward. Scaling that prototype into a reliable, high-volume production system is where most challenges begin.

Many innovations in flexible circuits, wearable sensors, and human-machine interfaces perform well in early testing. But when production scales, inconsistencies in materials, process variation, and design limitations often surface.

Understanding how prototyping shapes the overall product journey is critical for engineers, product teams, and manufacturers aiming to bring reliable, cost-effective solutions to market.

Why Scaling Printed Electronics Is Challenging

Printed electronics operate differently from traditional electronics. They rely on material behavior, printing precision, and layer interactions, all of which become more sensitive at scale.

Key challenges include:

• Variability in conductive ink performance across batches
• Substrate inconsistencies affecting adhesion and flexibility
• Registration alignment issues in multi-layer printing
• Process sensitivity to curing conditions
• Increased defect rates during high-volume runs

What works in a lab environment often does not directly translate to production without optimization.

Alt Text: Printed electronics manufacturing process from materials to final product

The Gap Between Prototype and Production

A prototype is designed to validate function, but production demands consistency, durability, and manufacturability. Bridging this gap often raises practical questions around materials, testing, and process readiness, particularly for teams moving beyond early-stage validation.

Many of these challenges are addressed in these detailed product prototyping FAQs, which help clarify key considerations before scaling to production.

Key differences:

Prototype stage

• Focus on functionality
• Limited production runs
• Flexible design tolerances

Production stage

• Focus on repeatability and yield
• Tight process control
• Optimized material and design parameters

Bridging this gap requires deliberate design and process adjustments.

Design Considerations for Scalable Printed Electronics

Scaling starts at the design level. Poor design choices during prototyping can create major bottlenecks later.

Critical design factors:

Trace Geometry Optimization

• Maintain consistent line widths
• Avoid overly fine features that reduce yield

Layer Stack Simplification

• Reduce unnecessary layers
• Minimize alignment complexity

Material Compatibility

Ensure inks, substrates, and adhesives work together under production conditions

Tolerance Planning

• Design with realistic manufacturing tolerances

A design that performs well at scale is intentionally simplified and optimized.

Material Selection and Its Impact on Production

Material behavior becomes more critical during scaling.

Key material considerations:

• Conductive inks must maintain consistent viscosity and conductivity
• Substrates must handle mechanical stress and environmental exposure
• Adhesive selection must ensure long-term reliability

Even small variations in material properties can lead to significant production inconsistencies.

Process Optimization for High-Volume Manufacturing

Scaling requires moving from experimental processes to controlled production systems.

Key process factors:

Printing Method Selection

• Screen printing for high-volume consistency
• Digital printing for flexibility and rapid changes

Curing Control

• Maintain consistent temperature and time
• Avoid under-curing or over-curing

Registration Accuracy

• Ensure precise layer alignment
• Reduce variation across batches

Quality Control Systems

• Inline inspection for defect detection
• Electrical testing for functional validation

Process stability is essential for maintaining yield and quality.

DFM in Printed Electronics Scaling

Design for Manufacturing plays a central role in scaling printed electronics.

Applying DFM ensures that designs are not only functional but also manufacturable at scale.

How DFM supports scaling:

• Reduces design complexity
• Aligns design with production capabilities
• Improves yield and consistency
• Minimizes production risks

Without DFM, scaling often leads to increased defects and higher costs.

Common Scaling Mistakes to Avoid

Many scaling issues stem from decisions made during early development.

Frequent mistakes include:

• Designing for prototype performance instead of production
• Ignoring material variability
• Overlooking curing and process requirements
• Using overly complex layer structures
• Skipping validation under real-world conditions

Avoiding these mistakes can significantly improve production outcomes.

The Role of Prototyping in Successful Scaling

Prototyping should not be seen as a one-time step. It should evolve alongside production readiness.

Effective prototyping approach:

• Use iterative prototyping to refine designs
• Test under production-like conditions
• Validate materials and processes early
• Simulate real-world environments

This approach reduces the gap between prototype and production.

Applications Where Scaling Matters Most

Scaling is particularly critical in industries where reliability and consistency are essential.

Key application areas:

• Medical wearables and biosensors
• Industrial control interfaces
• Automotive electronics
• Consumer electronic devices

In these sectors, failure at scale can lead to safety risks, recalls, or performance issues.

Where Expertise Makes the Difference

Scaling printed electronics successfully requires deep integration of design, materials, and manufacturing expertise.

From real-world experience, early collaboration between engineering and manufacturing teams significantly reduces scaling challenges. Decisions around substrates, conductive inks, and layer structures made during design directly influence production success.

Organizations that specialize in printed electronics and human-machine interfaces often bring this integration into the process. By aligning prototyping with manufacturing capabilities early, they help ensure that products transition smoothly from concept to high-volume production.

Frequently Asked Questions (FAQs)

What does scaling printed electronics from prototype to production mean?

Scaling printed electronics means transitioning a functional prototype into a consistent, high-volume manufacturing process while maintaining performance, quality, and reliability.

Why is scaling printed electronics challenging?

Scaling is challenging due to material variability, process sensitivity, and the need for precise control over printing, curing, and layer alignment in high-volume production.

What is the difference between prototype and production in printed electronics?

Prototypes focus on validating functionality, while production requires repeatability, durability, and tight process control to ensure consistent output at scale.

How does design for manufacturing support scaling?

Design for Manufacturing helps simplify designs, align them with production capabilities, and reduce defects, making it easier to scale efficiently.

What are common mistakes when scaling printed electronics?

Common mistakes include designing only for prototype performance, ignoring material consistency, using complex layer structures, and failing to validate under real production conditions.
