Rocksmith Real Tone Cable: Setup, Fixes & Alternatives (2026)

Your Rocksmith Real Tone Cable is connected, Rocksmith is open, and the first note should register immediately. Instead, the input meter remains still, Windows cannot detect the cable, or the sound reaches your speakers too late for comfortable playing.

Those symptoms do not automatically mean the cable has failed. A loose breakaway connector, blocked Windows permission, incorrect audio format, weak active-pickup battery, or delayed audio-output path can produce nearly identical problems.

The Rocksmith Real Tone Cable remains one of the simplest ways to connect an electric guitar, bass, or another compatible instrument directly to Rocksmith. This guide explains how the cable works, how to install and calibrate it, how to fix detection and latency problems, and when an audio interface or microphone connection is the better option.

Quick Answer: Rocksmith Real Tone Cable

The Rocksmith Real Tone Cable contains an analog-to-digital converter that turns the signal from a guitar, bass or another instrument with a standard 1/4-inch output into USB audio.

For a reliable connection:

• Insert the 1/4-inch plug fully into the instrument.
• Firmly reseat the detachable breakaway connector.
• Connect the USB end to the computer or PlayStation.
• Select the cable under Rocksmith’s audio-input settings.
• Turn the instrument’s volume up before calibration.
• Set Windows input and output devices to 16-bit, 48,000 Hz.`input devices.
• Use wired headphones or speakers to reduce delay.
• Avoid unofficial driver packages and cable-repair utilities.

Rocksmith+ currently provides cross-platform access on iOS, Android, PC, and PlayStation. Ubisoft lists the Real Tone Cable among its officially supported peripherals and recommends it for electric guitars and basses with standard 1/4-inch outputs.

Key Takeaways

• The cable is a basic USB audio interface, not a passive adapter.
• Windows normally installs its driver automatically.
• It commonly appears as Rocksmith USB Guitar Adapter.
• The breakaway connector should be checked before changing software settings.
• Windows input and playback devices should normally operate at 48,000 Hz.
• Windows may set the cable’s input level near 30% during Rocksmith+ use.
• Bluetooth, televisions, soundbars, and receivers can add noticeable delay.
• Rocksmith+ supports compatible audio interfaces as alternatives.
• Rocksmith 2014 primarily documents the Real Tone Cable for direct electric guitar and bass input.
• A generic USB guitar cable is not guaranteed to provide the same compatibility.

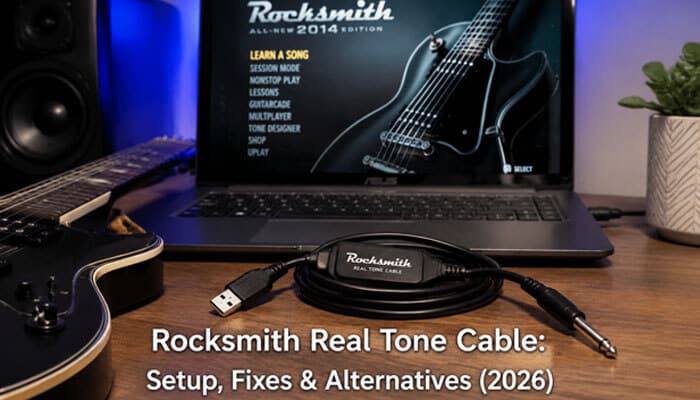

What Is the Rocksmith Real Tone Cable?

The Rocksmith Real Tone Cable is a specialized instrument-to-USB connection developed for the Rocksmith series.

One end has a standard 1/4-inch instrument plug. The other uses USB-A. Conversion hardware inside the cable turns an instrument’s analog electrical signal into digital audio that a computer or console can process.

It is commonly used with:

• Electric guitars
• Electric basses
• Electro-acoustic guitars with 1/4-inch outputs
• Electro-acoustic basses
• Digital keyboards with suitable analog outputs
• Other compatible instruments that produce an appropriate 1/4-inch signal

The cable also has a detachable quick-release connection near the USB end. This breakaway section is designed to separate when the cable is pulled suddenly, reducing the chance of dragging connected equipment.

Ubisoft describes the cable as a direct connection for instruments with 1/4-inch outputs and recommends it on PlayStation for responsive note detection and access to Rocksmith+ instrument tones.

Is It Just a Normal Guitar-to-USB Cable?

No.

A standard instrument cable carries an analog signal to an amplifier or audio interface. The Real Tone Cable contains the conversion hardware needed to send that signal through USB.

Some generic USB guitar cables may appear in Rocksmith+ under Other Interfaces, but their compatibility, noise level, input strength and latency can vary. Ubisoft supports compatible third-party interfaces without guaranteeing that every generic USB cable will work.

Rocksmith Real Tone Cable Specifications

The official product description has historically listed direct 48 kHz computer recording, an approximately 11.25-foot length and a quick-release design. Specifications on generic “Rocksmith-compatible” products may differ, so buyers should check the exact model rather than relying on a similar appearance.

How Does the Cable Work?

A guitar pickup produces an analog electrical signal. A USB port cannot interpret that signal directly, so it must first be converted into digital audio.

The cable performs three basic tasks:

1. It receives the instrument signal through the 1/4-inch connector.
2. It converts the analog waveform into digital audio.
3. It sends that audio to Rocksmith through USB.

Rocksmith can then analyze:

• Pitch
• Note timing
• Chords
• Sustain
• Tuning
• Signal level
• Playing accuracy

Rocksmith+ continuously analyzes a player’s performance and uses that information to provide real-time feedback and learning recommendations.

Compatibility in 2026

Ubisoft currently lists Rocksmith+ access on iOS, Android, PC and PlayStation. Its supported-peripherals page also identifies the Real Tone Cable as an official connection option.

Does an Older Cable Work With Rocksmith+?

An official cable supplied with an earlier Rocksmith release can often still work with Rocksmith+, provided it is physically undamaged and recognized by the connected device.

Inspect:

• The 1/4-inch plug
• The wire near the plug housing
• The detachable breakaway connector
• The USB plug
• Areas that have been crushed or folded tightly
• Previous repairs or splices

A cable that works only when bent or held at a particular angle probably has an internal wiring problem.

Rocksmith+ vs Rocksmith 2014 Learn & Play

The two products do not provide identical connection options.

Ubisoft’s Rocksmith 2014 PC configuration guide says that the game supports the Real Tone Cable for direct electric guitar and bass input. Ubisoft separately introduced Microphone Mode for acoustic instruments, so it is more accurate to call the cable the primary documented direct electric-instrument connection rather than the only possible way to interact with the game.

The current Steam listing states that the Real Tone Cable is not included and must be purchased separately.

Important USB-Port Note for Rocksmith 2014

Windows can store separate audio settings for the same device on different USB ports. Moving the cable to another port may therefore require you to set its format again.

Ubisoft’s configuration guide recommends 1 channel, 16-bit, 48,000 Hz and notes that Windows stores settings separately for each port.

What You Need Before Setup

Check the Instrument First

Before changing Windows or Rocksmith settings:

• Turn the instrument volume fully up.
• Set passive tone controls high.
• Set active EQ controls close to flat.
• Replace an uncertain active-pickup battery.
• Check that the output jack is secure.
• Test the instrument through an amplifier when possible.

A weak active battery, loose jack or low output setting can make a functioning cable appear defective.

How to Set Up the Cable on Windows

Step 1: Reseat the Breakaway Connector

Locate the detachable connection near the USB end.

Separate both sections and reconnect them firmly. A partially seated breakaway connector can prevent the cable from appearing in Windows or Rocksmith.

Ubisoft lists the connector among the first items to check when the cable is not detected.

Step 2: Connect the Instrument

Insert the 1/4-inch plug completely into the instrument output.

A partially inserted plug can cause:

• No signal
• Intermittent input
• Crackling
• Buzzing
• Weak sustain
• Signal loss when the cable moves

Step 3: Connect the USB End

Begin with the simplest available connection.

Recommended testing order:

1. Direct USB 2.0 port, when available
2. Another direct USB port
3. Data-capable USB-C adapter
4. Reliable USB hub if direct detection fails

Avoid introducing several adapters at once. A simple connection makes it easier to identify the source of a failure.

Step 4: Allow Windows to Install the Device

Windows should normally install the required USB audio driver automatically.

In Device Manager, the device commonly appears as:

Rocksmith USB Guitar Adapter

Wait for Windows to finish configuring the device before opening Rocksmith.

Does the Cable Need a Separate Driver Download?

Normally, no.

When Windows does not install the device correctly, reinstall it through Device Manager instead of downloading an unofficial driver package.

Reinstall the Cable in Device Manager

1. Right-click the Windows Start button.
2. Open Device Manager.
3. Expand Sound, video and game controllers.
4. Locate Rocksmith USB Guitar Adapter.
5. Right-click it and choose Uninstall device.
6. Open the Action menu.
7. Select Scan for hardware changes.
8. Allow Windows to reinstall the device.
9. Reopen Rocksmith.

Ubisoft maintains separate driver-installation and troubleshooting guidance for the Real Tone Cable on PC.

Avoid Downloading

• Unofficial Real Tone Cable driver packages
• “Rocksmith cable repair” programs
• Modified USB audio drivers
• Random DLL replacements
• Registry-cleaning tools
• No-cable patches presented as official software
• Driver bundles from file-sharing sites

A page using the Rocksmith name is not necessarily produced or approved by Ubisoft.

Step 5: Allow Audio-Input Access in Windows

Windows can recognize the cable while preventing desktop software from accessing audio-input devices.

On Windows 11:

1. Open Settings.
2. Select Privacy & security.
3. Open Microphone.
4. Turn on Microphone access.
5. Turn on Let apps access your microphone.
6. Turn on Let desktop apps access your microphone.
7. Close and reopen Rocksmith.

Microsoft confirms that desktop applications require the desktop microphone-access setting to be enabled.

On Windows 10, the older path is:

Settings → Privacy → Microphone

Microsoft ended free standard support for Windows 10 on October 14, 2025, although eligible devices may have additional support options.

Step 6: Select the Cable in Rocksmith+

Open Rocksmith+ and go to:

Settings → Audio Input/Output → Use a Cable

Select the Real Tone Cable from the available input devices.

Ubisoft’s official connection guidance confirms that an electric guitar or bass with a standard 1/4-inch output can be connected through the Real Tone Cable on PC or console.

When the expected cable name does not appear, check Other Interfaces. Certain drivers or audio-routing programs may cause Windows to present the device differently.

Step 7: Set the Instrument Controls

For the first signal test:

• Turn the instrument volume fully up.
• Set passive tone controls fully or nearly up.
• Set active EQ controls close to their center positions.
• Choose a pickup with a clear, strong output.
• Strum normally while watching the input meter.

Step 8: Match the Windows Audio Format

For reliable compatibility, set the cable input and playback output to:

16-bit, 48,000 Hz

For the cable input, Windows may display:

1 channel, 16-bit, 48,000 Hz

Ubisoft’s Rocksmith 2014 PC configuration guide recommends these formats and enables exclusive-mode priority for the lowest practical latency.

Change the Input Format

1. Open Control Panel.
2. Select Sound.
3. Open the Recording tab.
4. Select Rocksmith USB Guitar Adapter.
5. Choose Properties.
6. Open the Advanced tab.
7. Select 1 channel, 16-bit, 48,000 Hz.
8. Apply the change.

Repeat the process under the Playback tab for the speakers or headphones used by Rocksmith.

Step 9: Complete Calibration and Noise Reduction

Rocksmith measures the incoming signal and then checks the background-noise level.

During calibration:

• Strum when requested.
• Use your normal playing strength.
• Stop playing when instructed.
• Mute the strings during noise reduction.
• Avoid touching switches or moving cables unnecessarily.

After calibration, play individual notes on every string to confirm that the input responds consistently.

How to Set Up the Cable on PlayStation

The PlayStation process avoids Windows drivers and privacy settings.

1. Connect the 1/4-inch plug to the instrument.
2. Connect the USB end directly to the PlayStation.
3. Firmly seat the breakaway connector.
4. Open Rocksmith+.
5. Select the cable connection option.
6. Choose the Real Tone Cable as the input.
7. Turn the instrument volume and tone up.
8. Strum while watching the signal meter.
9. Complete noise reduction.

Ubisoft says the meter should peak around the middle green and yellow bars. A very low reading indicates insufficient input, while a reading on the far-right red bars indicates that the signal is too strong.

Recommended PlayStation Audio Settings

For the lowest practical delay:

• Select Linear PCM where available.
• Enable the television’s Game Mode.
• Disable Dolby, DTS, and virtual-surround processing during testing.
• Use a direct mode on receivers and soundbars.
• Avoid Bluetooth and other wireless headphones.
• Avoid routing audio through several devices.
• Use the shortest practical audio-output path.

Extra processing in a television, receiver, soundbar or wireless headset can make the instrument sound noticeably later than it was played.

How to Use the Cable on Mobile Devices

Rocksmith+ is available on iOS and Android, but the physical cable connection depends on the phone, tablet and adapter. Ubisoft lists mobile platforms as part of its current cross-platform offering.

Compatibility may depend on:

• USB-C or Lightning connection
• Data and audio-input support
• Adapter power requirements
• Operating-system version
• Device USB-audio support
• Whether the adapter supports data or charging only

Do not assume that every inexpensive adapter carries USB audio data.

Mobile Setup Process

1. Connect the cable to the instrument.
2. Connect the USB end through a compatible mobile adapter.
3. Open Rocksmith+.
4. Open the audio-input menu.
5. Select the external cable or interface.
6. Confirm that the input meter responds.
7. Complete calibration.

Mobile Microphone Alternative

For an acoustic instrument—or an electric instrument played through an amplifier—the mobile device microphone may be more convenient.

For better detection:

• Place the device near the instrument or amplifier.
• Reduce room noise.
• Use a clean amplifier tone.
• Avoid heavy delay, reverb, fuzz, and pitch effects.
• Keep amplifier volume moderate.

Rocksmith Tuner App

The Rocksmith Tuner app can connect a phone to Rocksmith+ for microphone-based detection.

When connecting the app to PlayStation:

• The phone and console should use the same local Wi-Fi network.
• Both should be logged into the same Ubisoft Connect account.
• The in-game QR code can direct users to the current app.

Ubisoft’s PlayStation connection guide confirms the same-network and same-account requirements.

How to Calibrate the Input

Poor calibration can resemble a cable failure.

Typical symptoms include:

• Missed notes
• False note detection
• Weak sustain
• Inconsistent volume
• Chords registering incorrectly
• Notes disappearing too quickly

Recommended Calibration Process

1. Tune the instrument accurately.
2. Turn its volume up.
3. Use your normal playing position.
4. Strum with your usual force.
5. Watch the signal meter.
6. Keep the room quiet during noise reduction.
7. Mute the strings only when requested.
8. Recalibrate after changing instruments or signal equipment.

Understanding the Signal Meter

Ubisoft’s PlayStation guidance specifically identifies the middle green and yellow bars as the target signal range.

The 60-Second Diagnostic Test

Use this test before reinstalling Rocksmith or buying another cable.

Check the Windows Input Meter

1. Connect the instrument and cable.
2. Open Settings → System → Sound.
3. Select Rocksmith USB Guitar Adapter.
4. Play several notes.
5. Watch the input-level meter.

A moving Windows meter confirms that the operating system is receiving a signal. It does not prove that every Rocksmith setting is correct, but it separates a basic hardware failure from an in-game configuration issue.

Why Is the Rocksmith Real Tone Cable Not Working?

Use the following fixes in order. Avoid changing several settings simultaneously because doing so makes the real cause harder to identify.

Fix 1: Cable Not Detected by Windows

Start with the physical connection:

• Disconnect and reconnect the USB plug.
• Separate and reseat the breakaway connector.
• Try another USB port.
• Test a direct connection before adding adapters.
• Restart the computer with the cable connected.
• Disconnect unnecessary USB audio devices.
• Test a reliable hub if a direct USB-C adapter is unstable.

If the cable still does not appear, reinstall it through Device Manager.

Fix 2: Windows Detects It but Rocksmith Does Not

Confirm that:

• The input is set to 16-bit, 48,000 Hz.
• The output uses the same sample rate.
• The cable is selected in Rocksmith.
• Desktop audio-input permission is enabled.
• Virtual audio devices are temporarily disabled.
• Other interfaces have been checked.

Virtual mixers, webcam microphones, and audio-routing tools can complicate device selection.

Fix 3: Cable Is Connected, but There Is No Guitar Sound

Check the signal path in order.

Instrument checks

• Turn the volume fully up.
• Try another pickup position.
• Set passive tone controls high.
• Set active EQ controls close to flat.
• Replace the active-electronics battery.
• Test the guitar through an amplifier.

Cable checks

• Insert the 1/4-inch plug fully.
• Reseat the breakaway connector.
• Try another USB port.
• Watch the input meter while gently moving the cable.

Rocksmith checks

• Confirm that the cable is the selected input.
• Confirm that the correct playback device is selected.
• Repeat calibration.
• Toggle Audio Exclusivity.
• Restart Rocksmith after major audio changes.

Fix 4: Notes Are Missed or Detected Incorrectly

Incorrect note detection does not automatically mean the cable is defective.

Check:

• Tuning
• Intonation
• Fret pressure
• String condition
• Pickup height
• Pickup selector position
• Input clipping
• Calibration
• Instrument output
• Pedals or pitch-changing effects

Recalibrate after:

• Changing instruments
• Switching between active and passive electronics
• Replacing a battery
• Changing pickup height
• Adjusting output volume
• Adding pedals or routing equipment

Fix 5: Notes Register but Do Not Sustain

A note may register initially and then disappear too quickly.

Possible causes include:

• Low instrument output
• Weak active-electronics battery
• Tone control rolled down
• Worn strings
• Excessive palm muting
• Loose output jack
• Uneven pickup height
• Poor calibration
• Signal clipping
• Changing fretting pressure

Sustain test

1. Tune the instrument.
2. Turn the volume fully up.
3. Set passive tone high or active EQ flat.
4. Try another pickup.
5. Recalibrate.
6. Hold one clean note without vibrato.
7. Repeat on every string.

When only one string has poor sustain, inspect the instrument setup and pickup balance before replacing the cable.

Fix 6: Buzzing, Humming or Crackling

First determine whether the noise comes from the instrument, cable or audio-output system.

Connect the instrument to an amplifier with a normal cable. When the same noise remains, the guitar, bass or electrical environment may be responsible.

Then gently move:

• The 1/4-inch plug
• The wire near the plug housing
• The breakaway connector
• The USB connector

Repeated crackling or signal loss at one location may indicate physical damage.

To reduce environmental noise:

• Move the cable away from power adapters.
• Disconnect unnecessary USB devices.
• Keep signal cables away from power leads.
• Repeat noise reduction.
• Try another pickup position.
• Test a laptop while it runs on battery.
• Move away from fluorescent lights and noisy chargers.

Do not remove electrical grounding as a noise workaround.

Fix 7: Cable Volume Keeps Returning to 30%

This can be normal Rocksmith+ behavior.

The application may reduce the Windows input level to prevent an overly strong signal from distorting note detection. Do not repeatedly force the Windows slider to 100% unless performing a controlled diagnostic test.

Fix 8: Audio Is Distorted or Garbled

Try these corrections in order:

1. Match input and output at 16-bit, 48,000 Hz.
2. Toggle Audio Exclusivity.
3. Increase the Audio Engine Buffer Size.
4. Disable Windows audio enhancements.
5. Reduce an excessively strong instrument signal.
6. Repeat calibration.
7. Restart Rocksmith.

A very small buffer may reduce latency but can cause crackling, dropouts, or silence when the computer cannot process audio consistently.

Fix 9: Cable Keeps Disconnecting

Possible causes include:

• Loose breakaway connector
• Worn USB plug
• Internal cable damage
• Loose instrument output jack
• Faulty USB-C adapter
• Unstable hub
• USB power or controller problem

Test the cable on another supported computer or console.

• When the problem follows the cable, the cable is the likely cause.
• When it occurs only on one USB port, the port or configuration is more likely responsible.
• When it occurs only with one guitar, inspect that instrument’s output jack.

Do not glue the breakaway connector together. It is designed to release under tension.

Fix 10: Rocksmith Stops Working After Changing USB Ports

Windows may treat the same cable as a separately configured device when it is moved to another USB port.

Recheck:

• Sample rate
• Bit depth
• Input level
• Exclusive-mode settings
• Microphone permission
• Rocksmith input selection

Ubisoft confirms that Windows stores separate Real Tone Cable settings for each USB port.

How to Reduce Rocksmith Audio Latency

The cable is often blamed for latency even when the largest delay occurs after the signal reaches the computer or console.

The full path is:

Instrument → cable → Rocksmith processing → audio output → speakers or headphones

Delay can be introduced by:

• Bluetooth transmission
• Television image and audio processing
• Soundbars
• Home-theater receivers
• Virtual-surround effects
• Large audio buffers
• Multiple audio-routing applications

Reduce Latency on PC

• Use wired headphones or speakers.
• Connect them directly to the active output device.
• Enable Audio Exclusivity when appropriate.
• Lower the Audio Engine Buffer Size gradually.
• Disable Windows audio enhancements.
• Close unnecessary audio applications.
• Keep input and output at 48 kHz.
• Avoid Bluetooth audio.

Ubisoft’s Rocksmith 2014 configuration guide recommends exclusive mode and 48 kHz audio for the output and cable input.

Audio Exclusivity: On or Off?

Start with Audio Exclusivity enabled. Turn it off when another application must share the device or when exclusivity creates compatibility problems.

Reduce Latency on PlayStation

• Select Linear PCM where available.
• Enable TV Game Mode.
• Disable Dolby, DTS and virtual-surround processing.
• Set receivers and soundbars to direct mode.
• Avoid Bluetooth and controller-connected headphones.
• Use as few devices as possible between the console and speakers.

Using Pedals, Amplifiers and Signal Splitters

Can Guitar Pedals Be Used?

A pedal can sit between the instrument and cable when it provides a suitable analog output. However, use a direct connection for initial setup:

Guitar → Real Tone Cable → Computer or PlayStation

Once direct note detection works, add one device at a time.

Effects that may reduce detection accuracy include:

• Heavy distortion
• Fuzz
• Octave effects
• Pitch shifting
• Harmonizers
• Aggressive noise gates
• Long delay
• Strong reverb
• Pitch-heavy modulation

A clean signal is easier for Rocksmith to analyze and makes troubleshooting more reliable.

Using a Split Signal

A suitable splitter, ABY unit, or routing device can send:

• One clean output to Rocksmith
• One output to a physical amplifier

Check that the equipment:

• Preserves the instrument signal
• Does not overload the cable
• Does not introduce excessive hum
• Sends a clean signal to Rocksmith
• Does not create a ground loop

Recalibrate Rocksmith after changing the signal chain.

Best Rocksmith Real Tone Cable Alternatives

Ubisoft’s current Rocksmith+ setup guidance identifies the Real Tone Cable, Rocksmith Tuner app and compatible audio interfaces as connection options.

Alternative 1: Audio Interface

An audio interface is the strongest alternative for users who record music or need more input control.

Look for:

• Instrument or Hi-Z input
• Current manufacturer drivers
• ASIO or stable WASAPI support
• Adjustable gain
• Headphone or speaker output
• 48 kHz operation

In Rocksmith+, select:

Other Interfaces

A compatible interface provides more control than the Real Tone Cable but requires correct driver, input-channel and output configuration.

ASIO Considerations

ASIO normally routes input and output through the same interface. Rocksmith may therefore prevent you from choosing a separate playback device.

This is expected full-duplex behavior rather than a fault. Use the interface’s headphone or speaker output when operating through its ASIO driver.

Alternative 2: Rocksmith Tuner App

The Rocksmith Tuner app can use a phone or tablet as a microphone for:

• Acoustic guitar
• Acoustic bass
• Amplified electric guitar
• Amplified bass
• Acoustic piano
• Digital piano played through speakers

For PlayStation use, the phone and console need the same Wi-Fi network and Ubisoft Connect account.

Alternative 3: Generic USB Guitar Cable

A generic USB cable may work when the operating system recognizes it as a compatible audio-input device. It will generally appear under Other Interfaces, not as an official Real Tone Cable.

Before purchasing, check:

• 48 kHz support
• Operating-system compatibility
• Driver availability
• Input noise
• Latency
• Return policy
• Independent Rocksmith testing

Similar appearance does not guarantee identical internal hardware or performance.

Rocksmith Real Tone Cable vs Audio Interface

Choose the Real Tone Cable When:

• You want the easiest setup.
• You use one electric guitar or bass.
• You play on PlayStation.
• You do not need microphone inputs.
• You prefer minimal configuration.
• Your main goal is Rocksmith practice.

Choose an Audio Interface When:

• You already own a compatible interface.
• You record music in other applications.
• You need hardware gain control.
• You want multiple inputs.
• You need microphone support.
• You want dedicated headphone monitoring.
• You regularly use ASIO software.

Can You Use the Cable Outside Rocksmith?

On a computer, the cable can appear as a USB recording device. Other compatible applications may therefore receive its instrument signal.

Possible uses include:

• Basic guitar recording
• Tuning software
• Practice applications
• Simple amplifier simulators
• Audio testing
• Waveform analysis

The cable is less flexible than a full audio interface because it lacks:

• Hardware gain control
• Microphone preamp
• Dedicated monitor outputs
• Headphone connection
• Multiple inputs
• Balanced audio outputs

It is best treated as a simple mono instrument input rather than a complete recording system.

Buying a New or Used Cable

What to Check in a New Listing

Look for:

• The exact Rocksmith Real Tone Cable product name
• Clear manufacturer and product details
• Standard 1/4-inch instrument plug
• USB-A connection
• Detachable breakaway section
• Reliable seller information
• Clear return terms

Do not rely only on the listing title. Generic products sometimes use “Rocksmith” as a search keyword without being the official cable.

What to Check Before Buying Used

Ask whether:

• Windows recognizes it as Rocksmith USB Guitar Adapter.
• It works without being held at an angle.
• The breakaway connector stays secure.
• The signal remains stable while the cable moves.
• The USB plug is bent.
• The instrument plug crackles.
• The cable has been repaired or spliced.
• It has recently been tested.

Signs of Possible Damage

• Visible cuts
• Crushed insulation
• Bent USB connector
• Loose plug housing
• Intermittent input
• Crackling when moved
• Disconnection near the breakaway section
• Device repeatedly appearing and disappearing in Windows

Is the Cable Included With Rocksmith 2014 Learn & Play?

No. The current Steam listing says the Real Tone Cable is not included and must be purchased separately.

Cable Care and Storage

• Disconnect the cable by holding the plug.
• Do not pull it by the wire.
• Coil it loosely after use.
• Avoid sharp bends near either connector.
• Keep it away from chair and desk legs.
• Do not stretch it tightly across a room.
• Keep liquids away from the USB section.
• Do not permanently disable the breakaway connection.
• Store it separately from heavy power adapters.
• Leave enough slack between the player and connected device.

Proper handling cannot prevent every internal failure, but it reduces strain near the connectors and converter housing.

When to Contact Ubisoft Support

Contact Ubisoft Support after completing the physical, Windows and Rocksmith checks.

Collect:

• Computer or console model
• Windows version or PlayStation model
• Rocksmith version
• Whether the cable appears in Device Manager
• The displayed device name
• Input and output sample rates
• USB ports and adapters tested
• Whether the Windows input meter moves
• Whether another instrument was tested
• Whether the cable was tested on another system
• Whether movement affects the signal
• Exact error messages
• Screenshots of relevant audio settings

Do not share passwords, authentication codes, payment details or unrelated personal files.

Final Isolation Table

Is the Rocksmith Real Tone Cable Worth Buying in 2026?

The Rocksmith Real Tone Cable remains worth considering for players who want a simple direct connection between an electric instrument and Rocksmith+ on PC or PlayStation.

It is particularly suitable for:

• New Rocksmith users
• PlayStation players
• Players using one electric guitar or bass
• People who do not own an audio interface
• Households wanting an uncomplicated setup
• Users who prefer officially supported hardware

It may not be the best choice for:

• Musicians who already own a compatible interface
• Players building a recording setup
• Users needing several inputs
• Acoustic players who prefer microphone detection
• Mobile users without confirmed adapter compatibility
• Players who need dedicated gain control

Its main advantage is simplicity. It does not offer the flexibility of an audio interface, but it removes many decisions involving drivers, input channels, monitoring, and gain staging.

Final Verdict :

The Rocksmith Real Tone Cable remains the most straightforward way to connect an electric guitar or bass to Rocksmith+ on PC or PlayStation.

When it does not work, troubleshoot in this order:

1. Check the instrument connection.
2. Reseat the breakaway connector.
3. Try another USB port.
4. Confirm that Windows detects the device.
5. Enable desktop audio-input permission.
6. Match input and output at 48,000 Hz.
7. Select the correct Rocksmith input.
8. Check the instrument battery and output.
9. Remove unnecessary audio processing.
10. Test the cable on another device.

This order separates physical failure from software configuration and avoids unnecessary driver downloads or replacement purchases.

An audio interface is the better option for recording, multiple inputs, and advanced routing. The Rocksmith Tuner app is convenient for acoustic or amplified instruments. For uncomplicated direct note detection, the official cable remains a practical choice in 2026.

Rocksmith Real Tone Cable FAQs

1. What is a Rocksmith Real Tone Cable used for?

A Rocksmith Real Tone Cable connects an electric guitar, bass, or compatible electro-acoustic instrument directly to Rocksmith. Its built-in converter changes the instrument’s analog signal into digital USB audio so the software can detect notes, chords, timing, tuning, and sustain.

2. Does the Rocksmith Real Tone Cable work with Rocksmith+?

Yes. The Rocksmith Real Tone Cable is an officially supported connection option for Rocksmith+ on compatible Windows PCs and PlayStation consoles. Mobile use may require a compatible data-capable USB adapter.

3. Why is my Rocksmith Real Tone Cable not being detected?

A Rocksmith Real Tone Cable may not be detected because of a loose breakaway connector, faulty USB port, blocked Windows microphone permission, driver error, incompatible adapter, or damaged wiring. Reseat the connectors, try another USB port, check Device Manager, and enable audio-input access.

4. Does the Rocksmith Real Tone Cable need a driver?

Windows normally installs the required USB audio driver for the Rocksmith Real Tone Cable automatically. Avoid unofficial driver downloads. When the cable is not installed correctly, uninstall it through Device Manager and let Windows reinstall the device.

5. How can I reduce Rocksmith Real Tone Cable latency?

Use wired headphones or speakers, avoid Bluetooth audio, match the input and output formats to 16-bit, 48,000 Hz, and disable unnecessary audio enhancements. On PlayStation, enable TV Game Mode and use Linear PCM where available to reduce Rocksmith Real Tone Cable latency.

Sofia Francis

Sofia Francis is a writer at Tycoonstory Media, specializing in business, startups, entrepreneurship, and marketing. She writes practical, research-based articles that help entrepreneurs, business owners, startup founders, and professionals understand market trends, growth strategies, digital marketing, and business opportunities. Her content focuses on making business knowledge simple, useful, and accessible for readers.

See Full Bio
