How to Choose the Right Three Phase Frequency Converter for 50Hz to 60Hz Conversion

Introduction

You just received an imported European CNC machine or industrial motor. You wire it up, switch it on — and within minutes the motor is overheating, running 20% above rated speed, and showing signs of stress. The machine is brand new. What went wrong?

The answer is almost always a frequency mismatch. The US grid runs at 60Hz. Most European and many Asian machines are engineered for 50Hz. Connecting them directly causes motors to spin faster than designed, overheat, and wear out prematurely. Control systems and PLCs are equally at risk.

A three phase frequency converter sits between your 60Hz grid and your 50Hz equipment. It accepts your local supply and delivers a clean, stable 50Hz output — at the right voltage — so your machine runs exactly as its manufacturer intended.

Why Are Three Phase Frequency Converters Growing in the US?

The Core Problem: 60Hz vs. 50Hz

Direct-connection damage is the single biggest driver of demand. When a 50Hz motor runs on 60Hz power without conversion, the effects are immediate and measurable:

• Synchronous and induction motor speeds increase by ~20% (1450 RPM becomes ~1740 RPM)
• Current draw rises, causing windings to overheat beyond rated thermal limits
• Mechanical components — bearings, seals, gearboxes — face loads they were never designed for
• Frequency-sensitive control electronics can misread timings or fail entirely

A frequency converter eliminates all of these risks. The 60Hz supply enters the unit; 50Hz clean power exits — tailored to the equipment’s exact needs.

Variable Frequency Drive (VFD) Capability

Many three phase frequency converters include integrated VFD functionality, which goes beyond simple frequency conversion. On units with VFD features, you also get:

• Soft-start: motor speed ramps up gradually, reducing mechanical shock and inrush current
• Speed control: output frequency can be adjusted to tune process speeds precisely
• Energy savings: for variable-load equipment like pumps and fans, reducing speed by 20% can cut power consumption by up to 50% (following the affinity laws for centrifugal loads)

Note: energy savings of this magnitude apply specifically to variable-torque loads (pumps, fans, compressors) when operating at reduced speeds. Constant-torque loads such as CNC machines will see more modest energy benefits.

Specialized and High-Demand Applications

Beyond standard manufacturing, frequency converters serve several industries where grid compatibility is non-negotiable:

• Aerospace and defense testing: equipment requiring ultra-stable 400Hz precision power
• Marine shore power: supplying vessels designed for 50Hz when docked at 60Hz ports
• Product certification labs: simulating international grid conditions (IEC, CE testing)
• Renewable energy integration: synchronizing distributed generation with local grid parameters

Phase Converter vs. Frequency Converter: Which One Do You Actually Need?

These two products are frequently confused, and buying the wrong one is an expensive mistake. They solve fundamentally different problems.

A phase converter

Answers: ‘I have single-phase power, but my equipment needs three-phase.’ It generates a third phase from your single-phase supply — and that is all it does. Frequency remains unchanged.

A three phase frequency converter

Answers: ‘My three-phase equipment needs 50Hz, but my supply is 60Hz.’ It transforms the frequency of an existing three-phase supply — and in many cases adjusts voltage as well.

Use the table below to identify which product fits your situation:

If your imported equipment runs on three-phase 50Hz power and you have a three-phase 60Hz US supply, you need a frequency converter — not a phase converter.

If your supply is single-phase and your equipment needs three-phase at the same frequency, a phase converter is sufficient. For facility managers looking for pure sine wave output to protect sensitive electronics, sourcing dedicated solid-state systems from established industrial power suppliers like PowerHome’s three-phase frequency converters ensures full electrical compatibility.

Key Parameters to Consider When Buying

Specifications vary significantly between manufacturers. The table below outlines the parameters that matter most for industrial 50Hz-to-60Hz applications, along with practical guidance on what to verify before purchasing your three-phase frequency converter.

A Note on Power Sizing

The single most common sizing error is matching the frequency converter’s kVA rating exactly to the load’s rated power. This leaves no headroom for startup surge currents — which can reach 5–7× the running current for direct-on-line motor starts.

As a reliable rule of thumb: size the three-phase frequency converter to at least 1.5× the total connected kVA. For multiple motors that may start simultaneously, calculate the worst-case combined startup demand. When in doubt, size up — an oversized converter runs cooler and lasts longer.

Step-by-Step Buying Guide

Work through these five steps before contacting any supplier. Having clear answers saves time and prevents costly specification errors.

Step 1 — Read the Equipment Nameplate

Locate the electrical specification label on your machine. Record: rated frequency (Hz), rated voltage (V), rated power (kW or kVA), number of phases, and full-load current (A). This is your non-negotiable baseline.

Step 2 — Confirm Your Facility Supply

Verify the available supply at your installation point: three-phase or single-phase, voltage level (208V / 240V / 480V are most common in the US), and available amperage from your breaker panel. Mismatches in input voltage are just as costly as output mismatches.

If the converter’s input voltage doesn’t match your facility supply, you have two options: source a unit that is factory-configured for your specific input voltage, or add an external step-down transformer. The first option is simpler and more space-efficient. When reviewing datasheets, check whether the manufacturer offers multiple input voltage configurations — many industrial three phase frequency converters support 208V, 240V, and 480V input as a standard option, not a custom add-on.

Step 3 — Calculate Required kVA with Margin

Convert your equipment’s rated power to kVA if needed (kVA = kW ÷ power factor; assume 0.8 if unknown). Multiply by 1.5 to 2.0 to set your minimum frequency converter rating. If multiple machines may run simultaneously, sum their kVA first, then apply the multiplier.

Step 4 — Define Output Requirements

Specify the exact output frequency (typically 50Hz), output voltage (e.g., 380V or 400V for European equipment), and waveform quality needed. If the machine includes a PLC, servo drive, or inverter, require THD < 3% in writing from the supplier.

Common mistakes to avoid:

• Sizing by kW nameplate alone without accounting for startup surge current
• Accepting THD figures above 3% for sensitive electronics or servo systems
• Overlooking input line voltage compatibility — Many buyers assume a 380V-input frequency converter can easily hook up to a standard US 480V grid

Real-World Applications

The following are the most common scenarios where a three-phase frequency converter provides direct value.

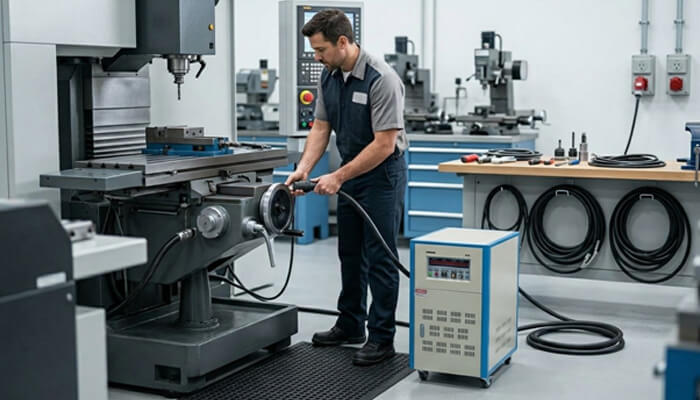

Imported CNC Machines and Machine Tools

European machining centers, lathes, and milling machines are typically rated 380V / 50Hz. Running them directly on a 480V / 60Hz US supply causes spindle motors to overspeed, coolant pump failures, and PLC timing errors. A properly sized frequency converter eliminates all three failure modes and allows machines to operate to their original performance specifications.

Industrial Pumps, Fans, and Compressors

For variable-load applications, a three-phase frequency converter with VFD capability delivers both compatibility and efficiency. Pump and fan laws mean that reducing speed by just 20% cuts power consumption by roughly 49%. In continuous-duty applications, this leads to measurable reductions in energy spend over the equipment’s operating life.

Production Lines with Mixed Equipment Origins

Facilities that source machinery from multiple countries often end up with 50Hz and 60Hz equipment on the same floor. Rather than maintaining separate power infrastructure, a single appropriately rated frequency converter (or a bank of smaller units) can supply all 50Hz machines from the common 60Hz grid.

Testing and Certification Laboratories

Labs certifying products for international markets need to simulate the grid conditions of the target region. A three-phase frequency converter with adjustable output — typically 45Hz to 65Hz with stable voltage regulation — allows engineers to test under European (50Hz), North American (60Hz), or aviation (400Hz) conditions from a single test bench.

Conclusion

Frequency mismatch is a real and well-documented cause of premature equipment failure, production downtime, and unplanned maintenance costs. For any facility running 50Hz imported machinery on a 60Hz US supply, a three phase frequency converter is the correct technical solution — not a workaround.
