To the naked eye, a carbon steel gate valve appears identical whether it originates from a mold or a forge. However, the internal metallurgical architecture dictates the component’s safety factor and lifecycle cost. As industrial applications demand higher pressures and stricter reliability, the choice between forged valves and cast valves becomes a critical engineering calculation.
This decision is rarely about absolute superiority; it is about “fitness for service.” Engineers must balance the need for structural integrity against budget and lead time. By examining how liquid solidification compares to plastic deformation under ASME B16.34 standards, we can define exactly when to prioritize the hammer over the mold.
Understanding Cast Valves: Design Flexibility Meets Economy

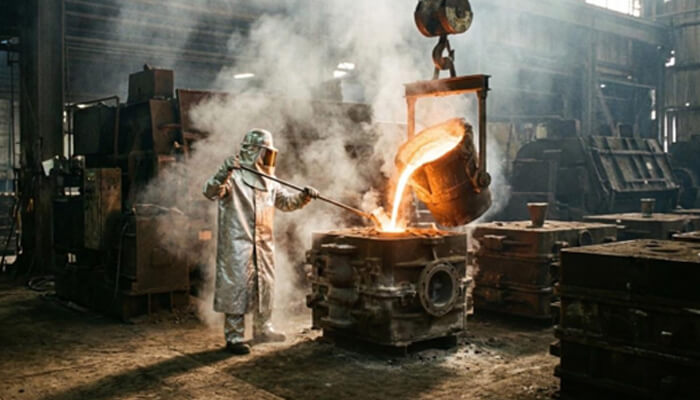

Valve casting is one of the oldest metalworking techniques. It involves heating steel (or other alloys) to a molten state and pouring it into a pre-designed mold. Once the metal cools and solidifies, the mold is broken away or opened to reveal the valve body, which is then machined to final tolerances. Common materials include ASTM A216 WCB (Carbon Steel).
The Advantages
The primary strength of casting lies in its geometry. Because liquid fills any void, manufacturers can create complex gating system and riser design that optimize fluid dynamics—shapes that would be impossible or prohibitively expensive to machine from a solid block.
- Cost-Effectiveness for Scale: For valves larger than 2 inches (DN50), casting is generally more economical.
- Contour Variety: It allows for streamlined body designs that reduce pressure drop.
The Limitations and Risks
The physics of solidification presents challenges. As liquid metal cools, it shrinks. If not managed perfectly by the foundry, this can lead to internal defects such as:
- Gas Porosity: Tiny gas pockets trapped inside the metal.
- Shrinkage Voids: Cavities formed where the metal cools unevenly.
To mitigate these risks, high-quality cast valves must undergo rigorous Non-Destructive Testing (NDT). Techniques like Radiography (RT) or Ultrasonic Testing (UT) are essential to verify that the pressure boundary is sound.
Understanding Forged Valves: The Strength of Grain Flow

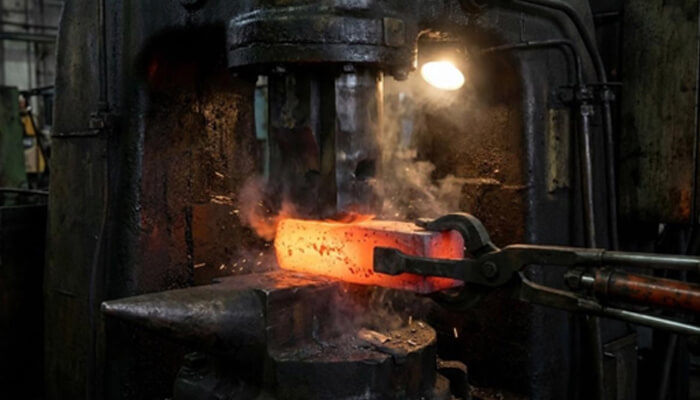

A forged valve begins its life as a solid ingot or billet. Unlike casting, the metal is never melted during the shaping process. Instead, it is heated to a pliable state and then subjected to extreme thermal and mechanical energy—using massive hammers or presses—to force it into shape. Common materials include ASTM A105.
The Advantages

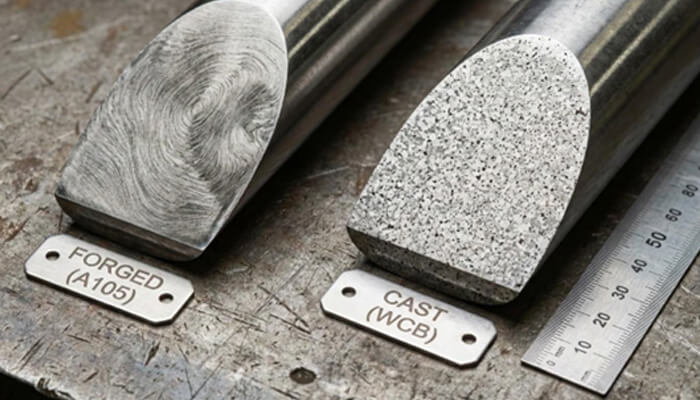

The defining characteristic of forging is Grain Flow. Imagine the grain of wood bending around a curve rather than being cut through; similarly, the forging process aligns the metal’s internal grain structure to the shape of the valve body.
- Superior Mechanical Properties: This alignment results in higher tensile strength, ductility, and impact resistance.
- Zero Porosity: The immense pressure effectively eliminates internal voids and gas pockets. For a high pressure forged steel valve, this reliability is paramount.
- Consistency: The structural integrity is uniform throughout the component, reducing the need for extensive X-ray inspection compared to castings.
The Limitations
- Size Constraints: Forging requires massive force and is therefore typically limited to smaller valves, usually under 2–4 inches. While larger custom forgings are available, they come at a premium. However, with advancements in the forging equipment industry, increasingly larger valve sizes can now be forged cost-effectively.
- Design Limitations: It is difficult to forge complex internal cavities. This often means forged bodies have heavier, blockier designs with potentially higher pressure drops compared to the streamlined flow paths of castings.
Decision Matrix: When to Use Which?
Selecting between forged vs cast valves involves analyzing three main vectors: Size, Pressure, and Criticality.
1. Small Sizes & High Pressure: Go Forged
For piping systems under 2 inches (DN50), especially in high-pressure classes (Class 800, 1500, 2500), forged steel is the industry standard.
- Standard: API 602 (Compact Steel Gate/Globe/Check Valves).
- Why: The cost difference between casting and forging in small sizes is negligible, but the strength benefit of forging is massive.
2. Large Sizes & General Service: Go Cast
For pipelines 4 inches and up, particularly in Class 150 to 600, casting is the dominant choice.
- Standard: API 600 (Steel Gate Valves).
- Why: Forging a 24-inch valve body requires enormous machinery and raw material, making it cost-prohibitive for general applications. A well-made cast valve serves these applications perfectly.
3. Critical & Lethal Service: The Grey Area
In nuclear power plants or lethal chemical services (where leakage is not an option), the decision becomes nuanced.
- Forged Preference: Engineers often specify forged valves regardless of cost to eliminate the risk of porosity.
- High-Spec Casting: If a large valve is needed, a “Level 1” casting may be specified, requiring 100% volumetric NDT (RT/UT) to guarantee it performs like a forging.
Conclusion
The debate of forged vs cast valves is not about declaring a winner, but about understanding the trade-offs. Castings offer versatility and economy for large infrastructure, while forgings provide unmatched structural confidence for high-pressure, critical lines.
However, the material method is only as good as the manufacturer controlling it. This is where industry leaders distinguish themselves. Neway Valve, for instance, has established a reputation for reliability by not just assembling valves, but by deeply integrating their supply chain.
Unlike manufacturers who rely entirely on third-party suppliers, Neway operates its own specialized foundries and uses advanced digital simulation technologies to predict and prevent casting defects before the metal is even poured. Simultaneously, their rigorous sourcing and testing protocols for forged components ensure that whether a project demands the complex geometry of a cast ball valve or the dense grain structure of a high-pressure forged gate valve, the output meets the most stringent global standards.
